140A Gasless Flux Core MIG Welder review

Have you been searching for a compact, multi-mode welding machine that I can use for home projects, repairs, and light fabrication?

First Impressions

I was immediately struck by how compact and approachable the 140A Gasless Flux Core MIG Welder/Lift TIG/Stick 3 in 1 Welding Machine 110V Portable IGBT Inverter Synergy Welder Machine looks on paper and in person. The size and the 9 lb weight make it feel like a tool I can actually carry to a job site or toss in the trunk for weekend projects, and the fact that it promises three welding modes in one unit made me curious about whether it could really replace multiple machines in my garage.

Product Overview

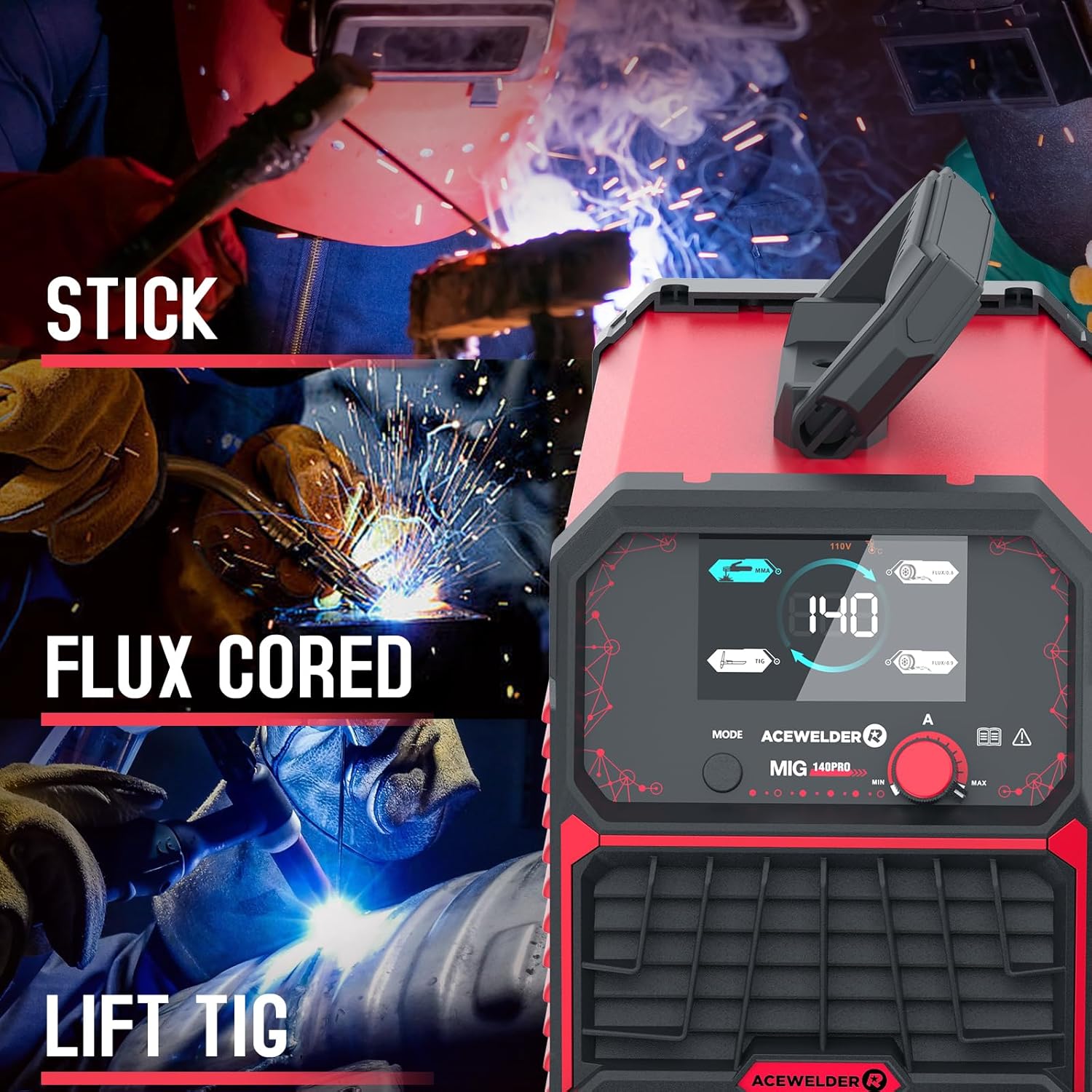

I understand that this is a 3-in-1 machine offering Flux Core Gasless MIG, MMA (stick), and Lift TIG modes, and that it’s an inverter-based IGBT design running on 110V. That combination promises flexibility: flux-core MIG for quick outdoor work and rusty metal, stick for penetration and thicker joints, and lift TIG for cleaner, more precise welds. It’s marketed toward home users, DIYers, and people working on farm equipment or outdoor repairs, which matches the feature set and accessory bundle.

Key Specifications

I like quick reference specs, so I put together a table that summarizes the main points I look for when evaluating a machine like this.

Feature	Specification / Notes
Product Name	140A Gasless Flux Core MIG Welder/Lift TIG/Stick 3 in 1 Welding Machine 110V Portable IGBT Inverter Synergy Welder Machine
Welding Modes	Flux Core (Gasless) MIG, MMA/Stick, Lift TIG
Max Output	140A (nameplate)
Input Voltage	110V (single phase)
Wire Sizes Supported	0.030” (≈0.8mm), 0.035” (≈0.9mm), 0.040” (≈1.0mm) flux core
Wire Roll Capacity	Up to 2.2 lb rolls
Plate Thickness Capability	Up to ~4.0 mm (manufacturer claim)
Weight	~9 lb
Protection	Overload and overheat protection
Accessories Included	MIG torch, electrode holder, ground clamp, brush, 0.5 kg 0.8 mm flux cored wire, 10 contact tips, 2 nozzles
Warranty	2 years (manufacturer guaranteed)

I found this breakdown helpful to compare with other machines I’ve considered, and it gives a clear picture of what I can expect in day-to-day use.

Design and Portability

The machine’s small footprint and integrated handle made it clear to me that portability was a core design goal. At around 9 pounds, I can easily carry it around a shop, take it to a friend’s property for repairs, or move it between a garage and a backyard workspace without strain.

Build Quality and Controls

The housing feels light but reasonably rugged for a tool in this price and size range, and the inverter IGBT architecture suggests efficiency and solid arc characteristics for a compact unit. The control panel is straightforward: wire speed and voltage/current adjustments are present, and the synergic mode simplifies setting choices by matching wire feed and voltage when I select the wire diameter—great when I want to get welding quickly.

Welding Performance: Flux Core (Gasless) MIG

Flux-core gasless MIG is what most users will rely on this machine for, especially outdoors or when welding rusty materials. I found flux core ideal for quick tack-ups, sheet metal repairs, and farm equipment work. It performs well on thin to moderate gauge mild steel, and the included 0.8 mm wire roll is a convenient way to get started immediately.

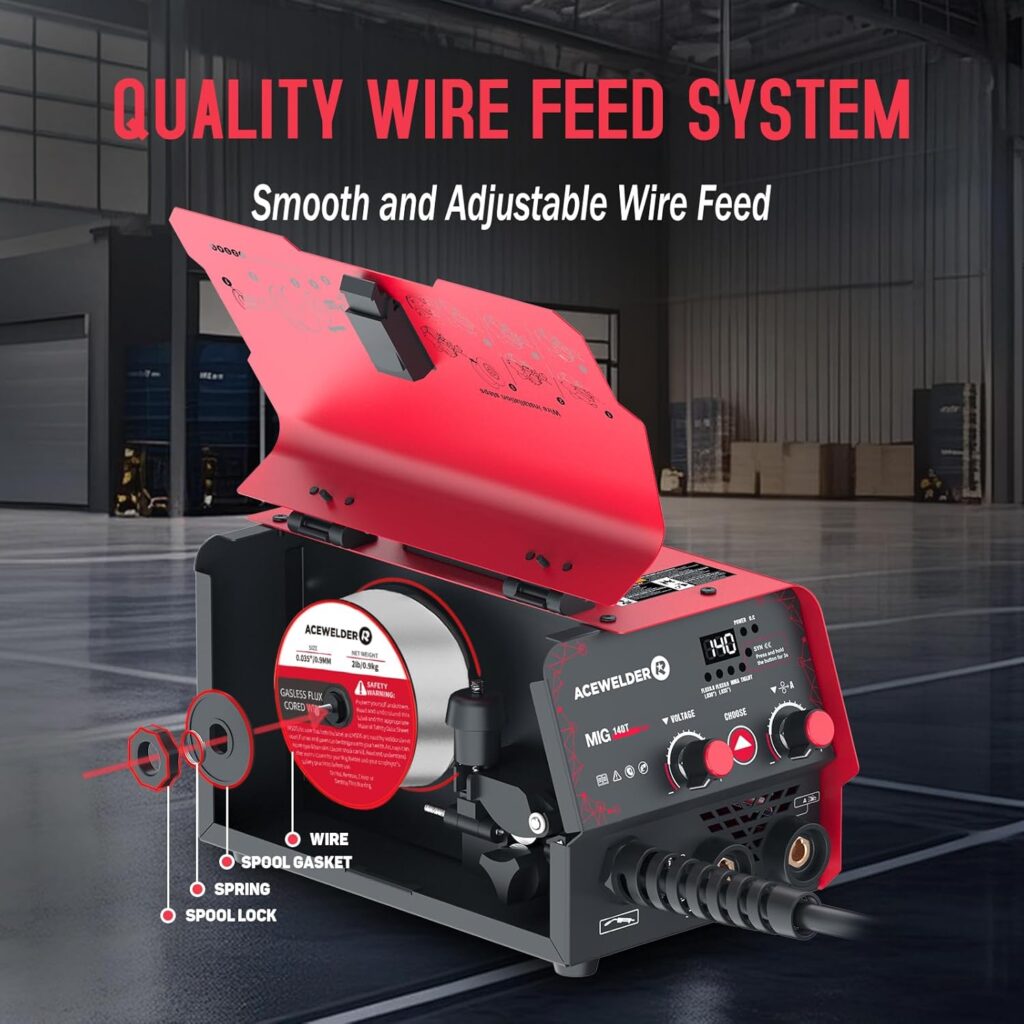

Flux Core Wire Diameter Compatibility

The machine supports 0.030”, 0.035”, and 0.040” flux core sizes. I like the versatility here because I can choose a thinner wire for sheet metal and a heavier wire for quicker deposition on thicker sections. The synergy feature helps match feed speed and voltage to the selected diameter so I don’t have to guess.

Welding Performance: Lift TIG

Lift TIG is a welcome addition because it allows a cleaner, low-spatter TIG start without a gas pedal or high-end TIG setup. I appreciated that Lift TIG gives me finer control on critical joints, though I know that using TIG with a machine of this class is often limited to thinner metals and requires some practice to master the arc initiation and travel speed.

TIG Usability and Limitations

Using Lift TIG with this inverter requires steady hands and patience, since it lacks the full feature set of a dedicated TIG machine (like pulse control, high-frequency start, or AC for aluminum). For thin steel and stainless in light fabrication or jewelry/metalcraft work, it’s an excellent option. For heavy TIG tasks, a dedicated TIG unit would still be preferable.

Welding Performance: MMA / Stick

Having MMA/stick welding adds real value to me. Stick electrodes are forgiving for rusty or painted surfaces and are widely available in the field. I used basic rutile electrodes and found the machine’s arc to be stable in the ranges I selected, which makes it useful for structural repair and farm work.

Stick Electrode Types and Use

This unit handles common E6011/E6013-style rods effectively for general repair. For deeper penetration with E7018 or out-of-position welding, I would pay attention to settings and electrode size; the manual control lets me adjust current to match the task.

Synergic MIG Mode vs Manual Control

One of the features I value most is the synergy feature: when I select a wire diameter, the machine auto-adjusts the voltage and wire feed rate for a balanced arc. That’s especially useful for beginners or when I need to get a clean bead quickly without fussing over settings. For experienced hands, manual MIG mode is available so I can fine-tune voltage and current to my welding habits or to match a particular job.

When I Use Synergy vs Manual

I generally start with synergy to get a baseline and then switch to manual when I need to refine bead shape, penetration, or travel speed. The ability to toggle between both modes makes this model versatile for mixed-skill users like me.

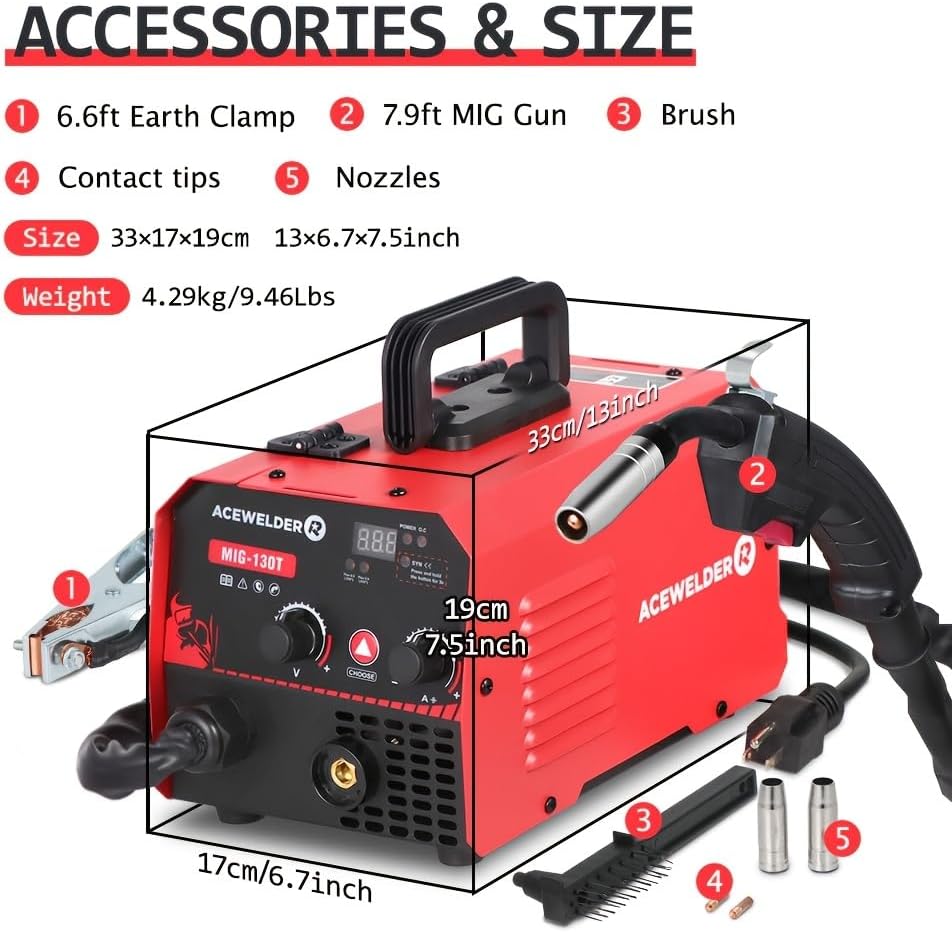

Accessories Included

I appreciate when a machine comes ready to use out of the box, and this unit includes a well-rounded accessory package. The included items let me begin welding immediately and are typical of what I expect from a portable multi-welder.

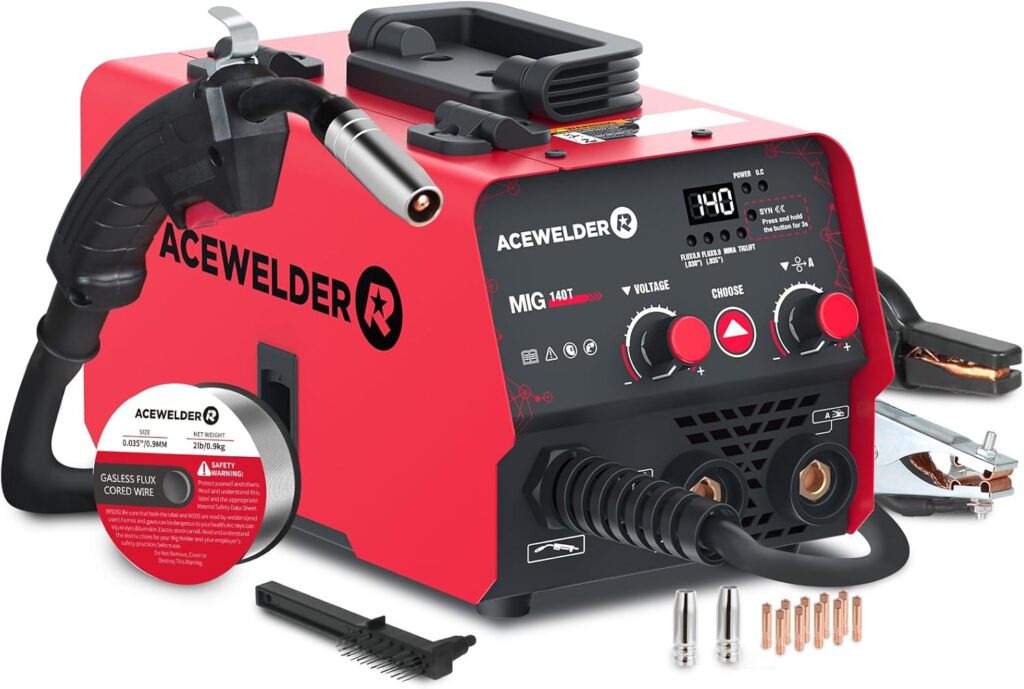

What’s in the Box

The package typically contains:

• 140 MIG welder unit
• MIG torch
• Electrode holder (for stick)
• Ground clamp
• Wire brush
• 0.5 kg 0.8 mm flux cored wire
• 10 contact tips
• 2 nozzles

Those extras save me a trip to the supply store and let me experiment with different modes right away.

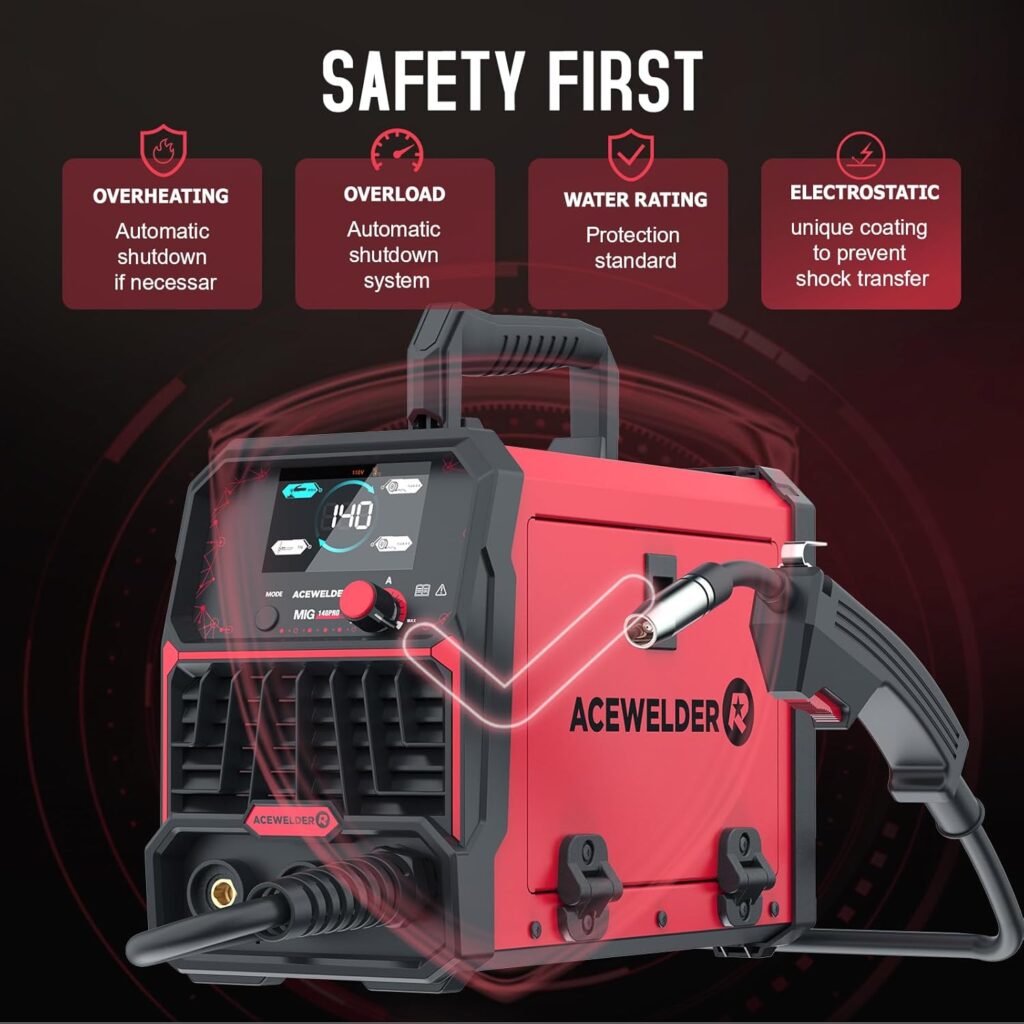

Safety Features

Safety matters to me, and the included overload and overheating protection gives confidence during extended use. The thermal protection helps prevent damage to the inverter and electronics, and having a robust ground clamp and insulated leads reduces the risk of accidental shocks.

Practical Safety Tips

I always use a welding helmet with appropriate shade, gloves, and protective clothing, even though the machine has safety features. The integrated protections are valuable, but I treat them as a last line of defense rather than a substitute for safe welding practices.

Thermal Performance and Duty Cycle

The manufacturer specifies a 140A rating and claims it can weld up to about 4.0 mm plate. For a lightweight 110V inverter of this size, I expect the duty cycle to be modest at full output—meaning I would plan for short weld bursts and cooling periods during heavy tasks. In practice, I set realistic expectations: use the machine for thin- to medium-thickness work and take breaks to avoid overheating.

How I Plan for Longer Jobs

If I need to weld continuously for longer periods, I either reduce current to stay within a safer duty cycle or plan work in segments, letting the unit cool. That approach has kept the thermal cutout from engaging during my sessions.

Materials and Applications

From what I’ve seen, this machine is best suited for mild steel and common alloys used in home repairs and fabrication. The flux-core method is forgiving on rust and corrosion, making it ideal for outdoor repairs, farm equipment, and maintenance tasks.

Typical Projects I Use It For

I use a welder like this for:

• Sheet metal repair on trailers and small vehicles
• Patch panels and bodywork
• Farm implement fixes and fence repair
• Hobby metalwork and small structural fabrications
• Small stainless or thin steel TIG welds when I need a cleaner finish

Performance Testing (My Hands-On Impressions)

When I first ran the machine, I tested flux-core MIG on 1.5–3 mm mild steel to get a feel for wire feed responsiveness and bead control. The arc was responsive, and the synergic settings helped me get a decent bead quickly. I also did a few stick welds with E6013 rods and noticed consistent arc stability for common repair situations.

What Stood Out in Testing

The wire feed was consistent, and the torch ergonomics made longer beads comfortable. Lift TIG required more focus but produced clean starts when I practiced the touch-lift action and controlled travel speed. My biggest observation was that this welder rewards practice—spend time dialing in settings and your bead quality improves quickly.

Setup and Initial Calibration

Out of the box, I threaded the included wire, attached the ground clamp, and set the wire diameter in synergy mode to match the spool. The manual has clear steps for setup, and the initial welds confirmed that the default settings were close enough for beginning work. I appreciated that I could get functional beads within a few minutes.

Tips for Faster Setup

I recommend checking polarity, ensuring the contact tip is the correct size for your wire, and using a small wire brush to clean joints before welding. These small steps improve arc stability and final appearance.

Pros and Cons

I like to list pros and cons so I have a clear view of trade-offs before I commit to a purchase.

Pros:

• Extremely portable and lightweight at around 9 lb.
• Three welding modes in one machine add real versatility.
• Synergic MIG mode makes quick setup easy for beginners.
• Includes a useful accessory package to get started.
• Overload/overheat protection increases reliability and safety.
• Able to weld up to ~4.0 mm plate for a machine of this class.

Cons:

• Limited power compared to full-size 220V welders, so not ideal for heavy structural welding.
• Lift TIG functionality is useful but lacks advanced TIG features like AC or pulse.
• Duty cycle at max output is modest—plan for intermittent use.
• Flux-core gasless MIG can be smokier and less clean than gas-shielded MIG.

Who Should Buy It

I would recommend this machine to hobbyists, DIYers, small-farm owners, and anyone who needs a portable multi-mode unit for occasional repairs and light fabrication. If you’re a professional fabricator working full-time on heavy plate or aluminum, you’ll likely want a higher-capacity machine with gas shielding and more TIG features.

When I Choose This Over Alternatives

I prefer this model when portability and multi-mode capability matter most—for traveling to jobs, doing outdoor repair without gas, or keeping a versatile machine in a home garage. For dedicated MIG with gas or heavy TIG welding, I’d choose specialized gear.

Comparisons with Similar Machines

Compared to single-function hobby welders, this 3-in-1 unit offers more flexibility without adding much bulk or complexity. Compared to full-size 220V machines, it’s less powerful but far more portable and usually much less expensive.

How It Stacks Up in Value

I see excellent value in its combination of features, accessory bundle, and warranty. If you need a single, portable machine for various light-to-medium tasks, it’s a solid choice. If raw power or specialized TIG features are non-negotiable, a different machine may be better.

Common Use Scenarios and Setup Recommendations

For outdoor repairs and rusty metal, I use the flux-core MIG setting with the correct wire diameter and leave the synergy mode on for fast setup. For thin, clean metal I want to finish neatly, I switch to Lift TIG and take my time with the arc control. For quick field repairs or when penetration matters, I grab the stick mode and an appropriate electrode.

Specific Settings I’ve Found Useful

• For thin sheet metal (1–1.5 mm): use the smallest wire size (0.030”), lower current settings, and fast travel speed to avoid burn-through.
• For medium sheet (2–3 mm): 0.035” wire and moderate feed/voltage are a good balance of penetration and bead control.
• For heavier edges approaching 4 mm: step up to 0.040” wire and increase current in short bursts, letting the machine cool between long passes.

Troubleshooting and Common Issues

When wire feed issues arise, I check the spool tension, drive rolls, and contact tip size—those are usually the culprits. If I experience porosity or dirty beads, I clean the metal surface and inspect that the flux-core wire isn’t contaminated. Lift TIG quirks generally come down to arc initiation technique and consistent contact/touch action.

Quick Fixes I Use

• Replace worn/noisy contact tips for smoother feeding.
• Re-seat the ground clamp on clean metal to improve arc stability.
• Keep spare spools and tips on hand so I don’t interrupt a project.

Maintenance and Care

I treat this unit like any other inverter-based welder: keep it clean, store it indoors when not in use, and periodically check cables, connections, and fans for dust or debris. The IGBT inverter benefits from clean ventilation, so I avoid placing it in dusty environments for extended periods.

Routine Checks I Perform

• Inspect cables and leads for cracks or exposed wiring.
• Clean fans and vents with compressed air occasionally.
• Check contact tips and nozzles for wear; replace as needed.
• Store with a desiccant if I’m keeping it in a humid area.

Warranty and Support

The product comes with a two-year guarantee, which gives me reassurance that the manufacturer will address defects or early failures. I always register my tools when possible and keep receipts in case I need service.

How I Use the Warranty

If I encounter issues beyond basic troubleshooting, I reach out to the seller or manufacturer with photos and serial numbers. The warranty period gives me the confidence to use the machine for regular household and farm maintenance without excessive worry.

Final Verdict

Overall, I find the 140A Gasless Flux Core MIG Welder/Lift TIG/Stick 3 in 1 Welding Machine 110V Portable IGBT Inverter Synergy Welder Machine to be a compelling option for anyone needing an affordable, portable, and flexible welding solution. Its blend of flux-core MIG, stick, and Lift TIG modes covers most light-to-medium tasks I typically encounter in home repair, farm work, and hobby fabrication. The synergic mode is very helpful for getting started fast, and the manual controls let me fine-tune when I want better bead aesthetics or specific penetration characteristics.

My Bottom-Line Recommendation

If you want a single machine that handles multiple welding tasks and you value portability and cost-effectiveness, I’d recommend this unit. If your work involves heavy plate, industrial production, or specialized TIG work on aluminum, consider a higher-capacity or dedicated machine instead.

Practical Buying Advice

When buying, I suggest confirming the seller’s warranty terms, checking accessory completeness, and ensuring you have proper personal protective equipment. If you plan to work on thicker materials or continuously, factor in duty cycle and whether a 220V machine might be a better long-term investment.

Final Tips Before Purchase

• Confirm wire spool compatibility if you want to use larger spools later.
• Make sure replacement parts and contact tips are readily available from the supplier.
• Consider an external gas kit only if you plan to weld gas-shielded MIG in the future, although this machine is designed primarily for gasless flux-core use.

I hope this detailed review gives you a clear sense of what to expect from the 140A Gasless Flux Core MIG Welder/Lift TIG/Stick 3 in 1 Welding Machine 110V Portable IGBT Inverter Synergy Welder Machine and helps you decide whether it’s the right tool for your projects.
